Telescopes > Celestron > CGX-L > Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo
Product no.: 72204

Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

$ 25,508.54 incl. VAT, plus shipping costs
long-term
ready for shipping in 3-6 months + lead time
  • Very fast astrograph with f/2.2
  • Belt drive: Smooth operation and high precision
  • Ideal for private observatories
Product questions?
advice for Telescopes

Product description

More about the series CGX-L...

Specifications

Optics

Type
Reflector
Type of build
Astrograph
Aperture (mm)
356
Focal length (mm)
790
Aperture ratio (f/)
2,22
Resolving capacity
0,39
Limit value (mag)
14,6
Light gathering capacity
2590
Coating
Starbright XLT
Tube material
Aluminium
Tube length (mm)
1080
tube diameter (mm)
405
Tube weight (kg)
34
Tube construction
Full tube
field (mm)
70
Fully Corrected Field (mm)
60,1

Reflector

Ventilation for central mirror
yes

Focuser

Type of build
primary mirror focusing
Backfocus (mm)
77,5 & 55
Connecting threaded socket (camera-side)
M48
Connection ( to eyepiece)
without
Gear reduction
without

Mount

Weight (kg)
21,3
GoTo control
yes
Type of build
CGX-L
Encoder
yes
Mounting type
Equatorial
Load capacity (kg)
34
Polar elevation setting (°)
3 - 65
Power supply
12
Diameter of counterweight bar (mm)
31,5
Mounting saddle
Losmandy & Vixen
Drive type
Worm wheel

GoTo control

GPS
optional
Software
NexStar
Interfaces
2x Aux, USB 2.0, Autoguider
Database
40.000
Tracking speeds
sideral, solar and lunar
GoTo Language
German, English, French, Spanish, Italian
Remote
Celestron PWI

Tripod

Tripod leg diameter (mm)
70
Type
Tripod
Material
Steel
Weight (kg)
21
Accessory plate
yes
Max. tripod height (cm)
134
Min. tripod height (cm)
91

Included accessories

Prism rail
Losmandy-Style
Counterweights (kg)
2x 10
Finder scope
without

General

Series
CGX-L

Area of application

Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for

Beginners
no
Advanced
yes
Observatories
yes
show more...

Recommended accessories

Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 17.90*

*All prices include VAT plus shipping costs.

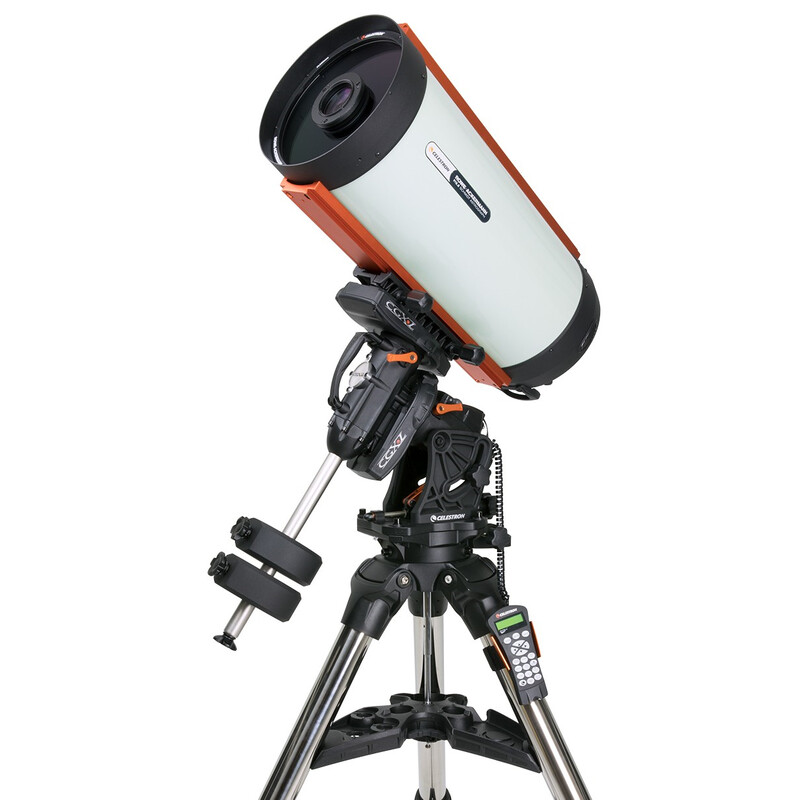

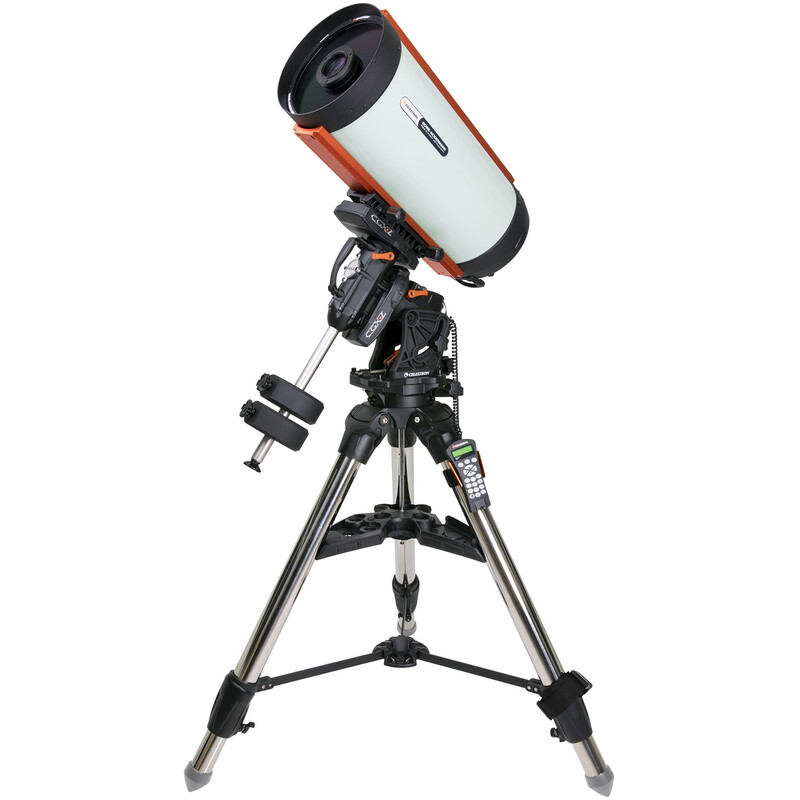

Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

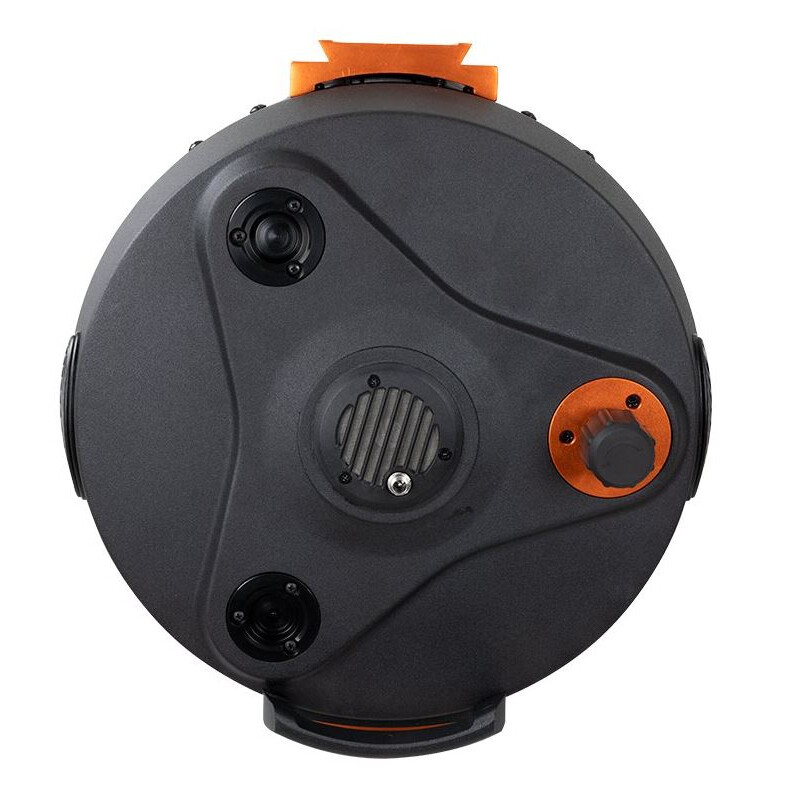

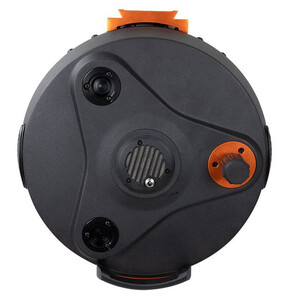

Rear View - the telescope has been optimized for astrophotography and has no focuser.
Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

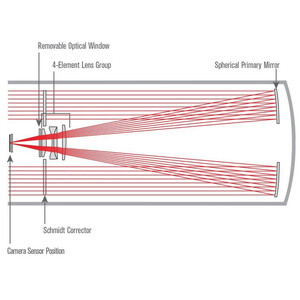

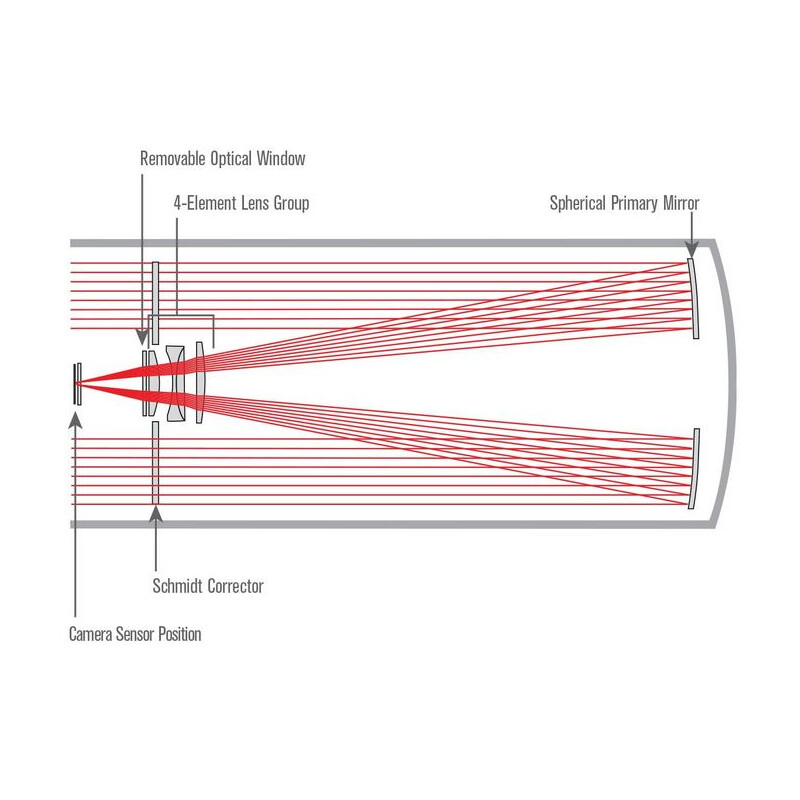

Cross-section through the light path
Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

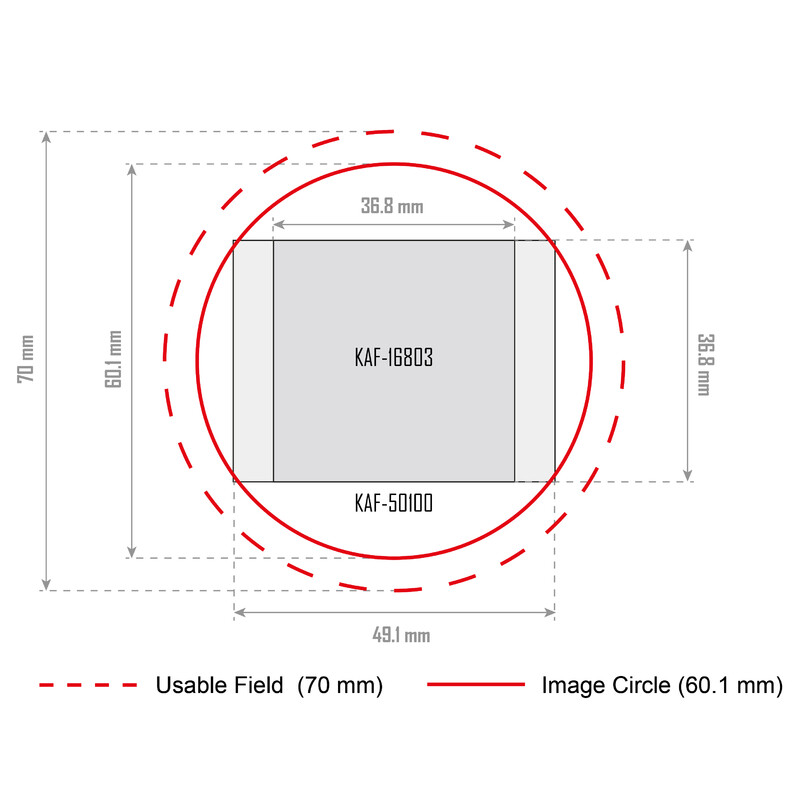

Fully Corrected Field
Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

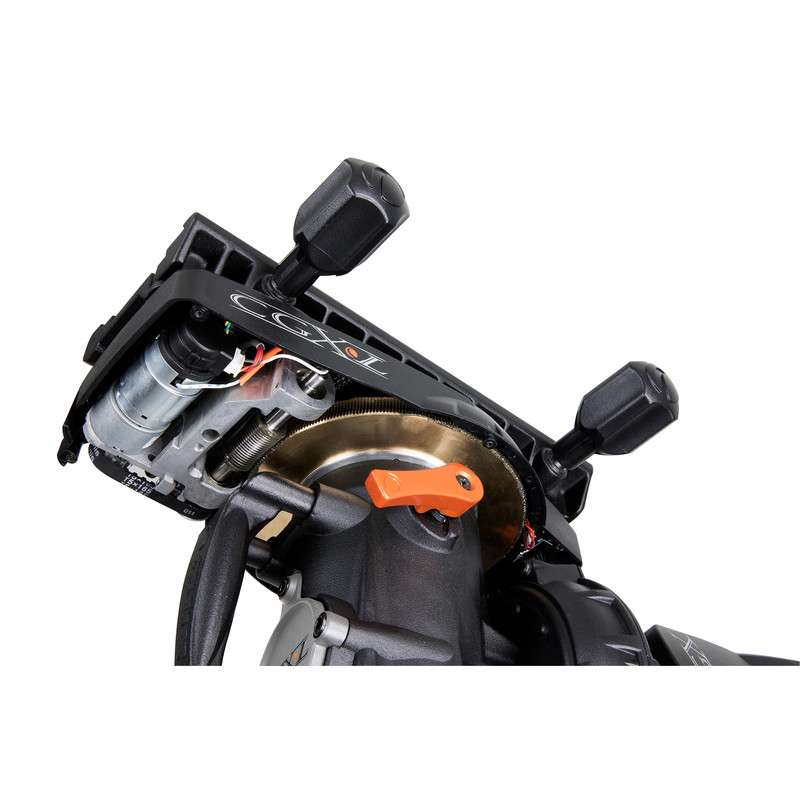

Toothed belt drive

Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

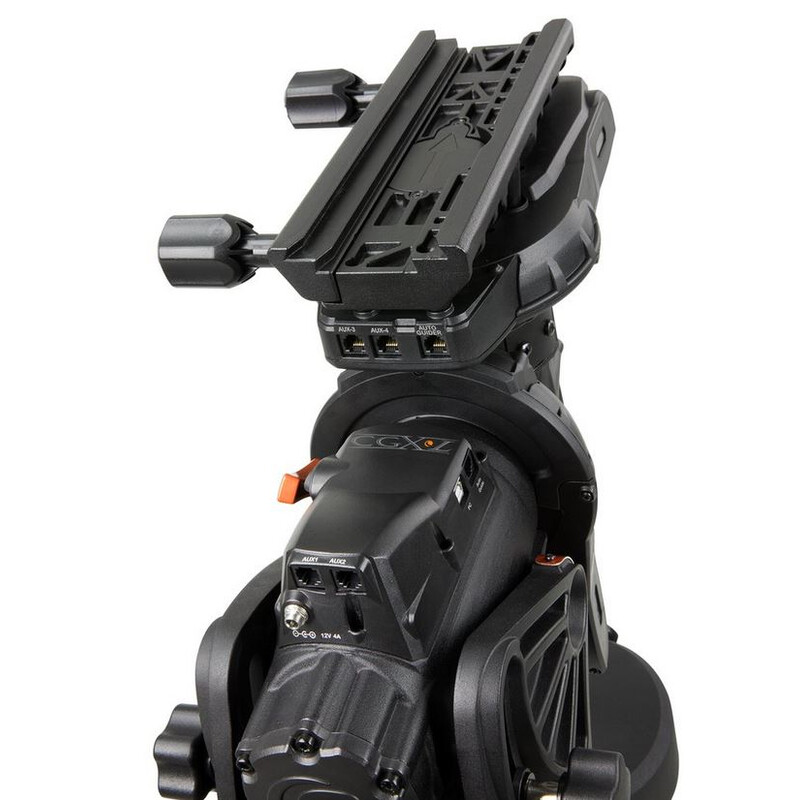

Mounting head
Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

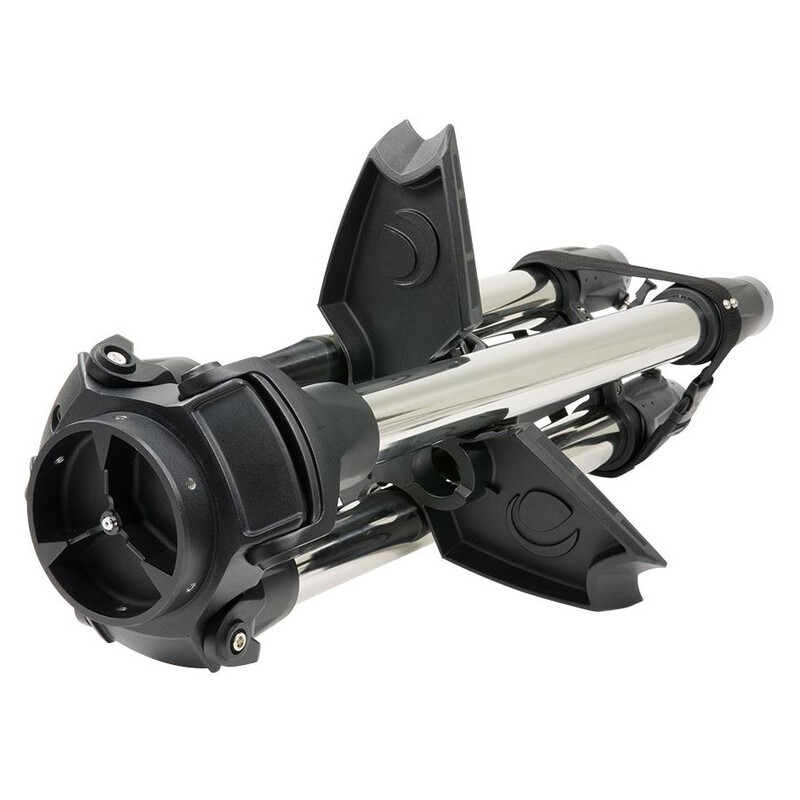

Tripod, foldable

Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo

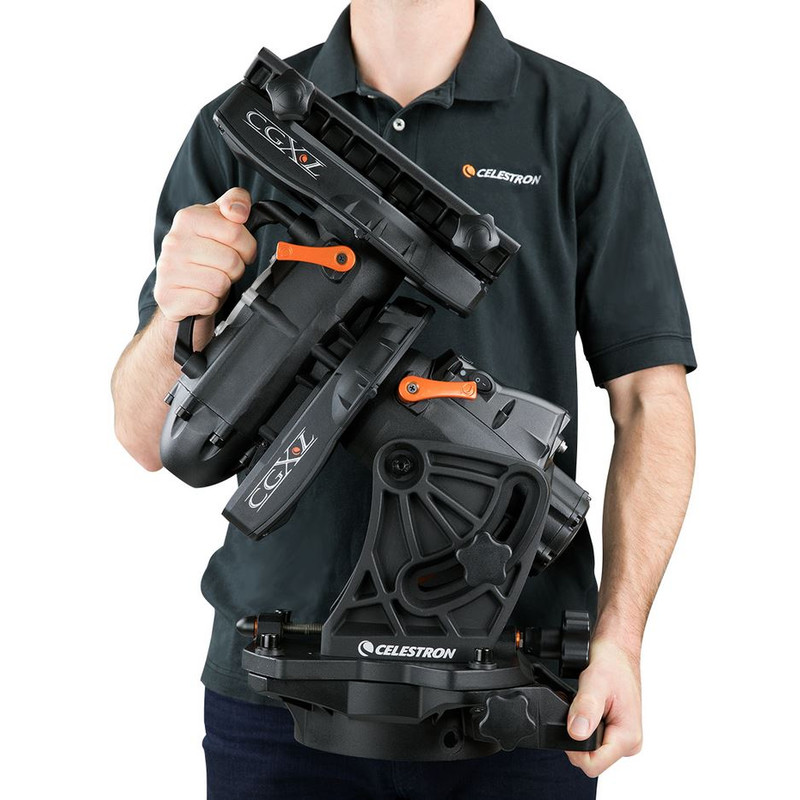

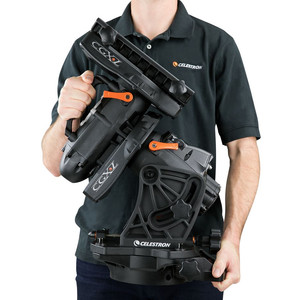

Convenient carrying handle

Celestron Teleskop Astrograph S 356/790 RASA 3600 CGX-L GoTo
Example
