The DZ series of modular stereo microscopes combine ergonomics with very high resolution optics. Both standard versions and custom models are possible thanks to the wide selection of different components such as zoom units, eyepieces, stands and accessories.

Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands and accessories

Six standard configurations with magnifications ranging from 8 to 80 times are available. The central zoom bodies DZ.1000, DZ.0800 and DZ.0630 can be adapted for configurations with magnifications from 4x to 160x.

A fluorescence illumination unit enables scientific research, such as the development of vertebrates and gene function, teratology, genetics and environmental sciences.

The modern DZ stereo microscopes are built on a modular basis around a central zoom body. The first with a zoom ratio of 1:6.3, the second with a zoom ratio of 1:8 and the third with a zoom ratio of 1:10. The modular DZ series of microscopes are among to the top stereo microscopes offered by Euromex. They feature extra WF eyepieces, plan apochromatic 0.5x, 1x and 2x objectives, an ergonomic stereo head with 0-35° inclined tube or a fixed stereo head with 20° inclined tube, and a stand with incident and transmitted light LED illumination.

EYEPIECES pair of EWF 10x/22mm eyepieces

HEAD • Ergonomic binocular head that tilts between 0 and 35° • Binocular 20° inclined head • ±  5 dioptre adjustment on both eyepieces • Inter pupillary distance from 55 to 75mm • Documentation modules for one or two cameras

CENTRAL ZOOM BODY Three central zoom bodies are available: • 1:6.3 for total magnifications from 8 to 50x • 1:8 for total magnifications from 8 to 64x • 1:10 for total magnifications from 8 to 80x

COMMON MAIN OBJECTIVE (CMO) • Standard configuration includes a 1x plan apochromatic CMO objective, WD 78 mm • A plan apochromatic CMO objective 0.5x (WD 126 mm) and 2x (WD 33 mm) are also available • All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAND • Large ergonomic stand with a Ø 100mm object plate and two object clamps • DZ series has a coaxial coarse and fine adjustment • Universal stand and an articulated arm stand without illumination are also available • The multi-head systems are equipped with a 420x350mm stage - without illumination - and are supplied with a 254x254mm glass plate

ILLUMINATION • Supplied with 3W incident and transmitted LED illumination with built-in 100-240V power supply • Both light sources can be used simultaneously, and the light intensities can be separately regulated

PACKAGE CONTENTS • Supplied with power cable, dust cover, spare fuse and operating instructions • All packed in a polystyrene box

STANDARD CONFIGURATIONS • All 9 standard configurations are equipped with EWF 10x/22mm eyepieces and 1x plan apochromatic CMO objective • All 9 standard configurations are equipped with a DZ.5040 rack and pinion stand and 3W incident and transmitted LED illumination

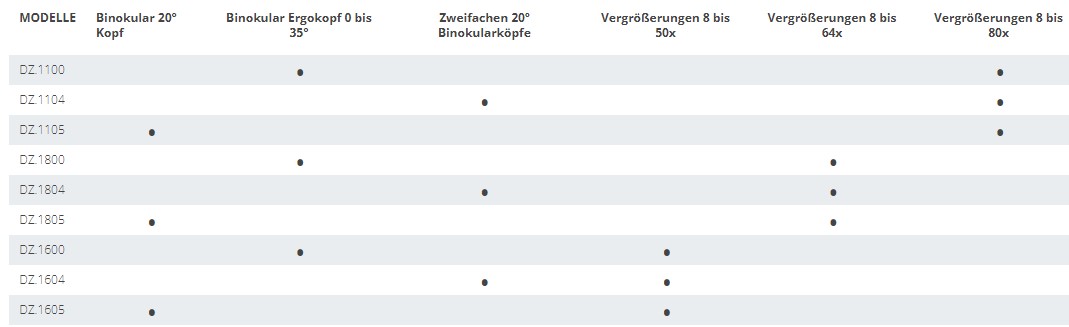

MAGNIFICATIONS AND FIELD OF VIEW FOR STANDARD CONFIGURATIONS (DZ.5040)

BUILD YOUR OWN MICROSCOPE A DZ series custom stereo microscope can be configured according to customer specifications by selecting one of the three central zoom bodies - DZ.0630, DZ.0800 or DZ.1000 - and adding the components required for your specific application. A pair of eyepieces, an ergonomic 5 to 35° tilting head or a fixed 20° inclined head, a 0.5x, 1x, or 2x common main objective, a large ergonomic LED stand, a boom or an articulated arm stand. Additional accessories such as a photo/camera unit or dual iris diaphragm round off the configuration. Multi-head versions are available for simultaneous viewing.

6 standard configurations are available for magnifications from 8 to 80 times. One can configure other configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630

A fluorescence illumination unit enables scientific research like for studies of vertebrate development and gene function, teratology, genetics and environmental sciences.

• Binocular and trinocular models
• 6 standard configurations or customized configuration
• Ergonomic tilting head from 5 to 35° tilting or fixed 20° inclined head, EWF10x/22mm eyepieces
• Three central zoom units from 4 to 320x
• Field of views from 55 to 1.4 mm
• Working distances from 126 to 33 mm
• Ergonomical rack & pinion stands, universal stand or articulated arm stand
• Transmitted and incident LED illumination
• 100 W epi-fluorescence mercury vapor illuminator
